Assigning a firewall to Linode NodeBalancer using Terraform and Cloud Manager.
Linode has finally rolled out support to assign a firewall device to a NodeBalancer (Linode’s managed load balancing service)!

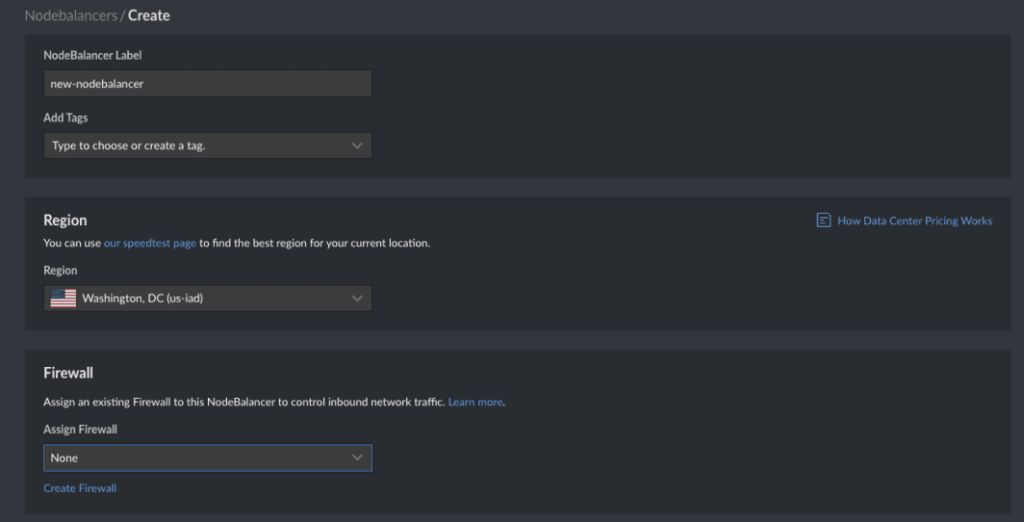

Assigning a firewall via CloudManager is quite easy and self-explanatory. Create a firewall, add the rules you need and simply select that firewall when you create a load balancer.
![](https://blog.slepcevic.net/wp-content/uploads/2023/12/Firewall-Nodebalancer-Screenshot-1064x542-1-1024x522.png)
More fun part is to use IaC, mainly Terraform.
Example code which will create a NodeBalancer, Firewall device and assign it to a load balancer.
NodeBalancer Terraform code:
resource "linode_nodebalancer" "primaryregion-lb" {
label = "nodebalancer-web-${var.primary_region}"
region = var.primary_region
client_conn_throttle = 0
}
resource "linode_nodebalancer_config" "primaryregion-lb-config" {
nodebalancer_id = linode_nodebalancer.primaryregion-lb.id
port = 80
protocol = "http"
check = "http"
check_path = "/"
check_attempts = 3
check_timeout = 30
stickiness = "none"
algorithm = "leastconn"
}
resource "linode_nodebalancer_node" "primary" {
count = "2"
nodebalancer_id = linode_nodebalancer.primaryregion-lb.id
config_id = linode_nodebalancer_config.primaryregion-lb-config.id
address = "${element(linode_instance.web-primary.*.private_ip_address, count.index)}:80"
label = "nodebalancer-web-${var.primary_region}"
weight = 50
}
Terraform code to create a Firewall and assign it to the said load balancer.
resource "linode_firewall" "lb-fw" {
label = "lb-pub"
inbound {
label = "allow-http"
action = "ACCEPT"
protocol = "TCP"
ports = "80"
ipv4 = ["0.0.0.0/0"]
ipv6 = ["::/0"]
}
inbound {
label = "allow-https"
action = "ACCEPT"
protocol = "TCP"
ports = "443"
ipv4 = ["0.0.0.0/0"]
ipv6 = ["::/0"]
}
inbound_policy = "DROP"
outbound_policy = "ACCEPT"
nodebalancers = [linode_nodebalancer.primaryregion-lb.id]
}
If you’ve ever used Terraform and Linode, you will notice it’s exactly the same approach we do when we want to assign a firewall device to a Linode (virtual machine); only difference is that we reference the “nodebalancer” instead of “linodes”.
Cheers,
Alex.
